Mindray BeneHeart R3A 3-Channel ECG

RM 4,250.00
Buy Now



Features



Reliable Analysis



BeneHeart R3 utilizes the University of Glasgow ECG analysis algorithm, one of the world-leading resting ECG interpretations with 40 years of history.
The Glasgow algorithm is the first to be based on specific variables, including age, gender, race, medication, and class in order to maximize the accuracy of the ECG interpretation.
On the report, a headline may highlight one of several “critical value warnings” to alert medical attendants of findings that need immediate attention.

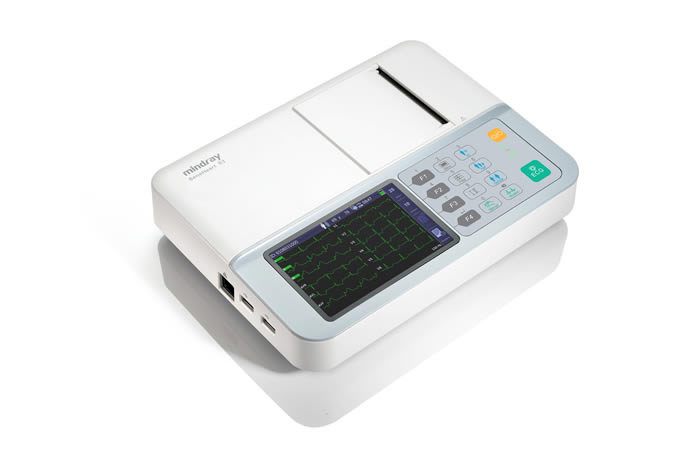

Clear Display



5-inch color screen offers the highest resolution in industry, enabling clinicians to observe real-time waveforms  accurately.

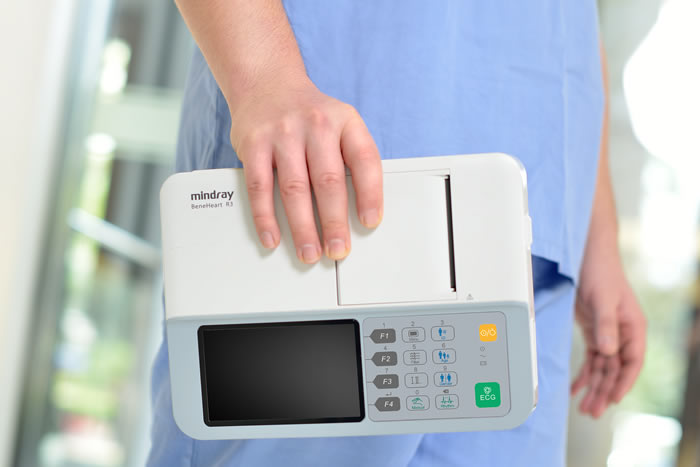

Great Portability



The BeneHeart R3 weighs only 1.2kg with battery, easy to carry.

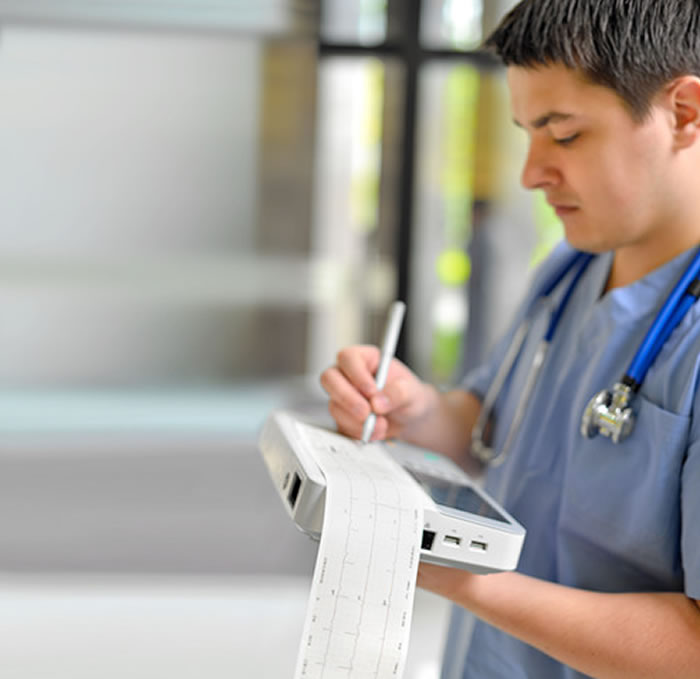

Convenient Operation



ECG recording is automatically unfolded on the writing pad on top of the machine for notes or signature.

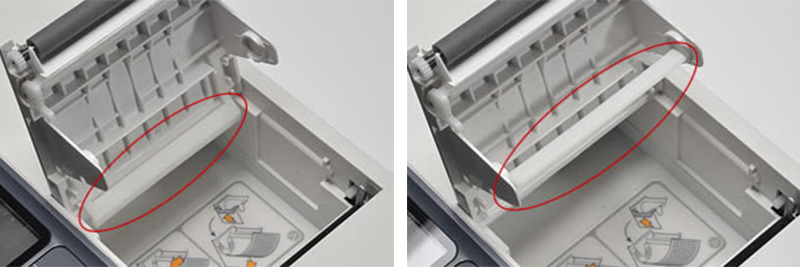

Unique Recorder



Compatible with both rolling paper and  Z-fold paper,  you can easily switch between these two styles of paper without dismantling the pressure lever.






Description

Lightweight portable cardiograph for resting ECG diagnosis.


• Reliable analysis – Glasgow algorithm
Utilizes the University of Glasgow ECG analysis algorithm, one of the world-leading resting ECG interpretations.
• Great Portability – only 1.2 kg
Weighs only 1.2 kg with battery, easy to carry.
• 5” clear colour display
Offers the highest resolution in industry, enabling clinicians to observe real-time waveforms accurately.
• Convenient operations
ECG recording is automatically unfolded on the writing pad at the top of the unit for notes or signature.
• Unique recorder – Z-folded or rolling paper
Compatible with both rolling paper and Z-fold paper.
Easily switchable without dismantling the pressure lever.

Technical Specifications
POWER:
• Supply: AC input without external power adaptor or battery operation
• AC power: 100 to 240 VAC ± 10% 60 VA
• Battery-type: rechargeable Lithium ion battery 11.1 V typical, 2500 mAh
– capacity: 6 hours of continuous operation without recording or 500 ECGs in 2.5 x 4 format at 25 mm/s and 10 mm/mV
– charge time: 3.5 hours with power off


PROCESSING:
• ECG analysis
• samplig rate: 500 samples/second (sps)
• Digital sampling rate: 1000 samples/second/channel
• Pacer detection sampling rate: 16000 samples/second/channel
• ECG amplifier: DC-coupled
• Acquisition mode: Pre-acquisition or post-acquisition provide 10 seconds of instantaneous ECG acquisition
• Baseline drift filter: 0.05 Hz, Baseline Drift Removal (BDR)
• AC filter: 50/60 Hz ± 0.3 Hz
• ADC: 24 bit
• Imput impedance: 50 MD at 10 Hz, defibrillator protected
• Patient leakage: < 10 µA
• Heart rate meter: 30 to 300 BPM ± 10% or ± 5 BPM, whichever is greater
• Sensitivity/gain: 5, 10, 20 mm/mV, Auto

DISPLAY:
• Dysplay: 24 bit Colour display TFT LCD with LED graphics backlit
• Resolution: 800 x 400
• Display data: Patient ID, gender, age, heart rate, clock, battery power indicator, waveforms, lead labels, speed, gain, filter settings, warning messages, information messages, network status and USB
• Thermal printer: Dot array/Width 80 mm/speed 5, 12.5, 25, 50 mm/s

SOFTWARE:
• Measurement and interpretation: according to University of Glasgow ECG analysis algorithm
• Resting ECG mode: Records and prints 12-lead resting ECG with 10-second duration as a standard
• Patient information: Patient ID, secondary ID, age, date of birth, gender, race, medication class and V3 electrode placement
• Internal storage: 800 ECGs in internal memory
• ECG Storage format: PDF format and Mindray storage format
• Multi-language internal software: GB, FR, IT, ES, DE, PL, PT, TR, RU, HU, RO, CZ, CN
• Report formats Thermal printer/PDF/A4/letter
• Size: 250 x 194 xh 56 mm
• Weight: 1.2 kg including battery

Standard accessories
• Cable with banana plugs, IEC
• Limb clamp set of 4
• Chest bulb set of 6
• Glasgow algorithm* in GB, IT, DE
• 1 roll paper
• Rechargeable battery
• User manual in: GB, FR, DE, HU, IT, PL, ES, TR
